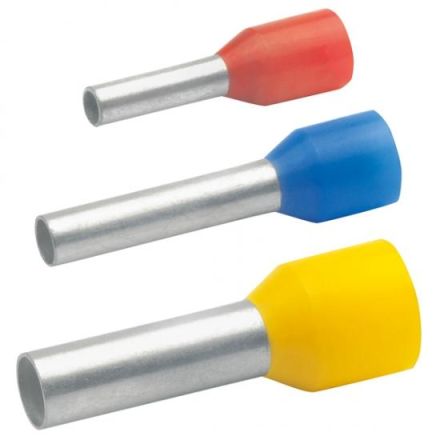

Klauke 47822 n. DIN 25qmm 22mm light yellow VZ insulated wire end ferrule

In stock
SKU: 555566
€0.30
Into a basketIn the basketGo

Overview

For fine and extra-fine-stranded conductors. Easy-entry insulation for splice-free cable entry. Crimped wire end ferrules for easy installation on cable terminals. Color coding and dimensions according to DIN 46228 Part 4. Halogen-free. Temperature resistance up to 105° C. Galvanically tinned to protect against corrosion. Material Cu in accordance with EN 13600. Plastic: polypropylene.

Property Value
Nominal cross section: 25 mm²
Sleeve length: 22 mm
Design: Standard
With identification flag: no
Color: yellow
Insulated: yes
Surface: tinned
Material: Copper
Halogen-free: yes
For short-circuit-proof cables: no
Tape goods: no
Insulation material: Polypropylene (PP)

Characteristics

Material of the insulationPolypropylene (PP)
For short-circuit-proof cablesNo
With identification flagNo
Sleeve length22 mm
HABN. DIN 25qmm 22mm light yellow VZ insulated
Minimal order50 pcs
ManufacturerKlauke
HAN47822
GTIN4012078023900
Tape goodsNo
DesignDefault
ColorYellow
Halogen freeYes
IsolatedYes
Nominal cross section25 mm²
SurfaceTinned
MaterialCopper
Klauke 47822 n. DIN 25qmm 22mm light yellow VZ insulated wire end ferrule
Klauke 47822 n. DIN 25qmm 22mm light yellow VZ insulated wire end ferrule
