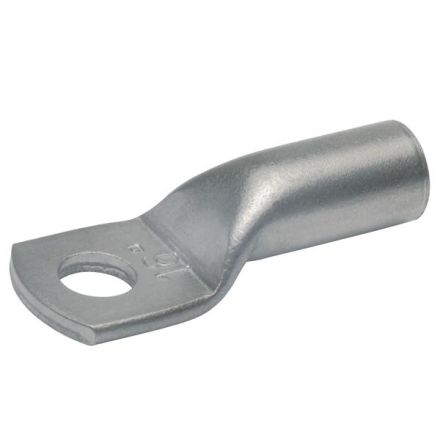

Klauke 58N6 4-6qmm 19mm M6 nickel tubular cable lug

Klauke 58N6 4-6qmm 19mm M6 nickel tubular cable lug

In stock

SKU: 556405

Price on request

€2.06

€0

Into a basketIn the basketGo

Overview

Suitable for high temperatures up to 650 °C. Flat contact surface thanks to special steel stamping technology. Precise end machining for easy cable insertion. Material pure nickel.

Property	Value
Nominal cross section:	6 mm²
Connection thread size (metric):	6
With viewing hole:	no
Flange shape:	Ring shape
Conductor class:	Cl.2 = stranded
Insulated:	no
Connection angle:	180° (horizontal)
Surface:	bright
Narrow flange version:	no
Material:	Nickel
Number of mounting holes:	1

Characteristics

HAB4-6qmm 19mm M6 Nickel

Minimal order100 pcs

Manufacturer

HAN58N6

GTIN4012078045292

Connection thread size (metric)6

Connection angle180° (horizontal)

Number of mounting holes1

Flange shapeRing shape

IsolatedNo

Leader ClassKl.2 = stranded

With viewing holeNo

Nominal cross section6 mm²

SurfaceBlank

Narrow flange designNo

MaterialNickel

Klauke 58N6 4-6qmm 19mm M6 nickel tubular cable lug

Klauke 58N6 4-6qmm 19mm M6 nickel tubular cable lug

Price on request

€2.06

€0

Into a basketIn the basketGo
