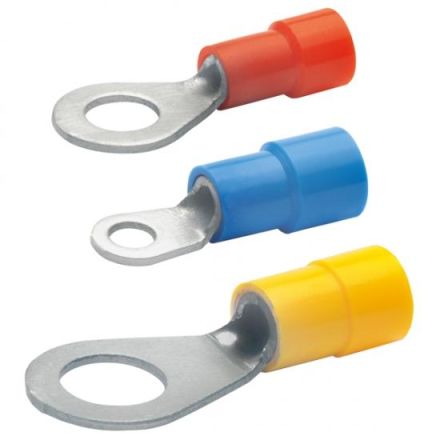

Klauke 6208 0.5-1qmm L: 22.5mm tinned insulated crimp cable lug

In stock

SKU: 555421

Price on request

€0.29

€0

Overview

With expanded insulating sleeve. For fine and extra-fine-stranded conductors. High-quality brazing process in the pressing area. Insulated, halogen-free. Temperature resistance up to 105° C. Easy-entry insulation for simple cable insertion. Color coding depending on cross-section. Tinned. Material Cu-ETP. Insulating sleeve: PA.

Property	Value
Nominal cross section:	0.5 to 1 mm²
Flange shape:	Ring shape
Suitable for multi-wire conductors:	no
According to DIN:	yes
Connection thread size (metric):	8
Insulation:	without
Insulation color:	red
Suitable for enamelled wire:	no
Surface:	tinned
Suitable for fine-stranded conductors:	yes
Material:	copper
Suitable for flat conductors:	no
Tape goods:	no
Suitable for solid conductors:	no
Suitable for high temperatures (up to 650 °C):	no
For tensile connections:	no
Suitable for round conductors:	yes
Sleeve shape:	short
Maximum current (Imax):	12.75 A
Bolt size (imperial):	8
