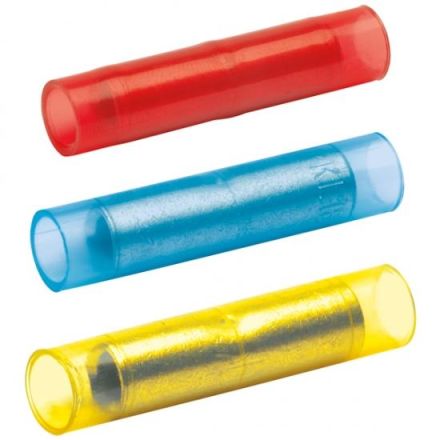

Klauke 623R standard version 16qmm insulating sleeve PA butt connector

In stock

SKU: 556967

Price on request

€1.31

€0

Overview

For multi-wire conductors e.g. 0295 class 2. For rounded multi-wire sector conductors. No further insulation of the pressed connection required. Is pressed directly with the insulation. With center impression for exact cable insertion. Optimum material and pressing properties due to annealed material. Precise end processing for easy cable insertion. Temperature resistance up to 105° C. Galvanically tinned to protect against corrosion. Connector: Material Cu according to EN 13600. Insulating sleeve: PA, halogen-free.

Property	Value
Insulation color:	blue
Nominal cross section:	16 mm²
Suitable for fine-stranded conductors:	no
Design:	Normal design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	yes
Suitable for enamelled wire:	no
Material:	copper
Suitable for solid conductors:	no
Suitable for flat conductors:	no
Number of branches:	2
Sleeve shape:	long
Suitable for round conductors:	yes
Surface:	tinned
AWG range:	5
For tensile connections:	no
Oil stop/centre bar:	no
Voltage series:	up to 10 kV
Connection type:	Butt connector
