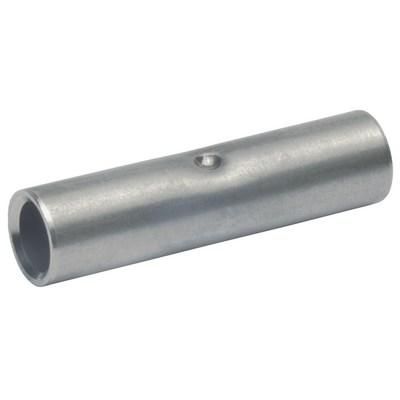

Klauke 62R 0.5-1qmm 25mm nickel butt connector

Klauke 62R 0.5-1qmm 25mm nickel butt connector

In stock

SKU: 559130

Price on request

€1.83

€0

Into a basketIn the basketGo

Overview

Suitable for high temperatures up to 650 °C. With center impression for exact cable insertion. Precise end machining for easy cable insertion. Material pure nickel.

Property	Value
Nominal cross section:	0.5 to 1 mm²
Suitable for fine-stranded conductors:	no
Insulation:	without
Design:	Normal design
Suitable for high temperatures (up to 650 °C):	yes
Suitable for multi-stranded conductors:	yes
Suitable for enamelled wire:	no
Material:	nickel
Suitable for solid conductors:	no
Suitable for flat conductors:	no
Number of branches:	2
Sleeve shape:	long
Suitable for round conductors:	yes
Surface:	bare
AWG range:	17 to 20
For tensile connections:	no
Oil stop/centre bar:	no
Voltage series:	up to 10 kV
Connection type:	Butt connector

Characteristics

Oil stop/central barNo

Voltage seriesUp to 10 kV

Number of branches2

HAB0.5-1qmm 25mm Nickel

Minimal order50 pcs

Manufacturer

HAN62R

GTIN4012078475938

AWG range17 to 20

VersionStandard version

For tensile connectionsNo

Suitable for flat conductorsNo

Suitable for enamelled wireNo

Suitable for round conductorsYes

Suitable for fine-stranded conductorsNo

Suitable for high temperatures (up to 650 °C)Yes

Suitable for solid laddersNo

Suitable for stranded conductorsYes

Sleeve shapeLong

IsolationWithout

Nominal cross section0.5 to 1 mm²

SurfaceBlank

Connection typeButt connectors

MaterialNickel

Klauke 62R 0.5-1qmm 25mm nickel butt connector

Klauke 62R 0.5-1qmm 25mm nickel butt connector

Price on request

€1.83

€0

Into a basketIn the basketGo
