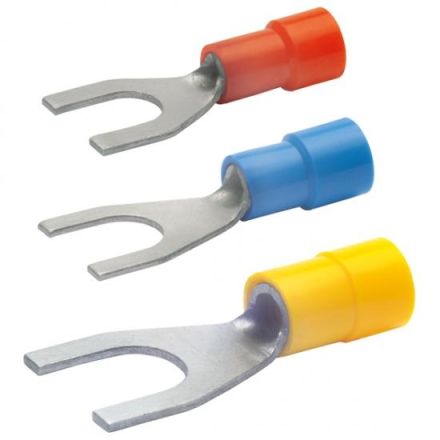

Klauke 650C6 according to DIN fork shape M6 4-6qmm insulated crimp cable lug

In stock

SKU: 555252

Price on request

€0.28

€0

Overview

According to DIN 46237 with expanded insulating sleeve. For fine and extra fine wire conductors. High-quality brazing process in the pressing area. Fork-shaped design for easy installation by screwing directly underneath. Insulated, halogen-free. Temperature resistance up to 105° C. Easy-entry insulation for simple cable entry. Color coding depending on cross-section. Tinned. Material Cu-ETP. Insulating sleeve: PA.

Property	Value
Nominal cross section:	4 to 6 mm²
Flange shape:	Fork shape
Suitable for multi-wire conductors:	no
According to DIN:	yes
Connection thread size (metric):	6
Insulation:	without
Insulation color:	yellow
Suitable for enamelled wire:	no
Surface:	tinned
Suitable for fine-stranded conductors:	yes
Material:	copper
Suitable for flat conductors:	no
Tape goods:	no
Suitable for solid conductors:	no
Suitable for high temperatures (up to 650 °C):	no
For tensile connections:	no
Suitable for round conductors:	yes
Sleeve shape:	short
Maximum current (Imax):	25.5 A
Bolt size (imperial):	6
