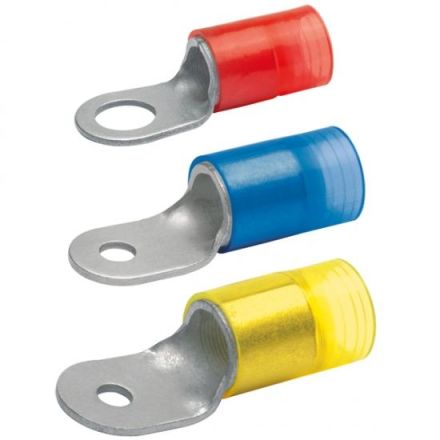

Klauke 65416 25qmm 59mm VZ insulated with Easy Entry crimp cable lug

In stock

SKU: 557717

Price on request

€2.17

€0

Overview

For conductors e.g. according to 0295 class 2, 5 and 6. High-quality brazing process in the pressing area. Insulating sleeve PA, halogen-free, with easy-entry cable entry. Dimensions in the conductor connection area according to DIN 46234. With groove embossing for better contact properties. Color coding depending on the cross-section. Temperature resistance up to 105° C. Galvanically tinned to protect against corrosion. Material Cu-ETP.

Property	Value
Nominal cross section:	25 mm²
Flange shape:	Ring shape
Suitable for multi-wire conductors:	yes
According to DIN:	no
Connection thread size (metric):	16
Insulation:	without
Color of insulation:	yellow
Suitable for enamelled wire:	no
Surface:	tinned
Suitable for fine-stranded conductors:	yes
Material:	copper
Suitable for flat conductors:	no
Tape goods:	no
Suitable for solid conductors:	no
Suitable for high temperatures (up to 650 °C):	no
For tensile connections:	no
Suitable for round conductors:	yes
Sleeve shape:	short
Bolt size (imperial):	other
