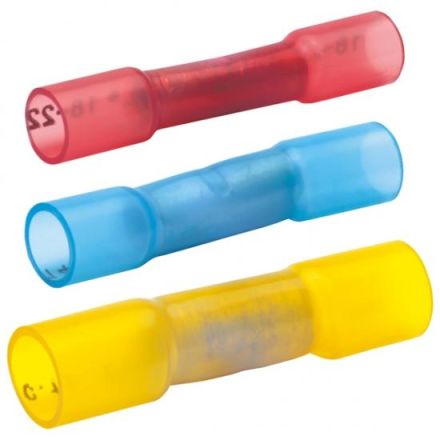

Klauke 700WS with heat shrink insulation 4-6qmm insulated butt connector

In stock

SKU: 555688

Price on request

€1.10

€0

Overview

For fine and extra-fine-stranded conductors. With central impression for precise cable insertion. With waterproof heat shrink insulation. Insulated, halogen-free. Color coding depending on cross-section. Special pressing tool required. Temperature resistance up to 105° C. Tinned. Material Cu-ETP. Insulating sleeve: PE.

Property	Value
Insulation color:	yellow
Nominal cross section:	4 to 6 mm²
Suitable for fine-stranded conductors:	yes
Design:	Normal design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	no
Suitable for enamelled wire:	no
Material:	other
Suitable for solid conductors:	no
Suitable for flat conductors:	no
Number of branches:	2
Sleeve shape:	long
Suitable for round conductors:	no
Surface:	tinned
AWG range:	10 to 11
For tensile connections:	no
Oil stop/centre bar:	no
Voltage range:	up to 230/380 V
Connection type:	Butt connector
