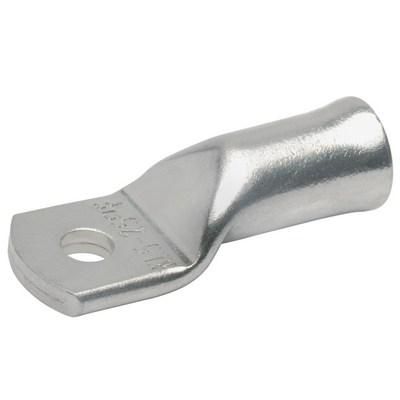

Klauke 705F14 without inspection hole F-series 35qmm M14 VZ tubular cable lug

In stock
SKU: 557911
€1.93
Into a basketIn the basketGo

Overview

For fine-stranded conductors, DIN EN 60228 (eg 0295 Class 5 and 6). Adapted tube dimensions for fine-stranded conductors. Precise end processing and expansion for easy cable insertion. Optimum material and pressing properties due to annealed material. Vibration-tested according to DIN EN 61373 Class 1B. Galvanically tinned to protect against corrosion. Material Cu according to EN 13600.

Property Value
Nominal cross section: 35 mm²
Connection thread size (metric): 14
With viewing hole: no
Flange shape: Ring shape
Conductor class: various
Insulated: no
Connection angle: 180° (horizontal)
Surface: tinned
Narrow flange version: no
Material: copper
Number of mounting holes: 1

Characteristics

HABWithout inspection hole F-series 35qmm M14 VZ
Minimal order25 pcs
ManufacturerKlauke
HAN705F14
GTIN4012078053525
Connection thread size (metric)14
Connection angle180° (horizontal)
Number of mounting holes1
Flange shapeRing shape
IsolatedNo
Leader ClassDifferent
With viewing holeNo
Nominal cross section35 mm²
SurfaceTinned
Narrow flange designNo
MaterialCopper
Klauke 705F14 without inspection hole F-series 35qmm M14 VZ tubular cable lug
Klauke 705F14 without inspection hole F-series 35qmm M14 VZ tubular cable lug
€1.93
Into a basketIn the basketGo
