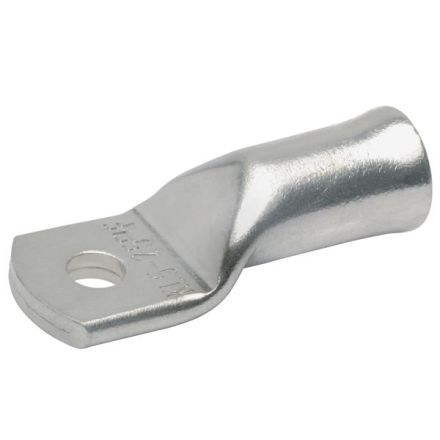

Klauke 706F10 without inspection hole F-series 50qmm M10 VZ tubular cable lug

Klauke 706F10 without inspection hole F-series 50qmm M10 VZ tubular cable lug

In stock

SKU: 556372

Price on request

€2.12

€0

Into a basketIn the basketGo

Overview

F-series, for fine-stranded conductors, DIN EN 60228 (eg 0295 class 5 and 6), Cu according to EN 13600, tin-plated, expanded for better cable entry

Property	Value
Nominal cross-section:	50 mm²
Connection thread size (metric):	10
With viewing hole:	no
Flange shape:	Ring shape
Conductor class:	various
Insulated:	no
Connection angle:	180° (horizontal)
Surface:	tinned
Narrow flange version:	no
Material:	copper
Number of mounting holes:	1

Characteristics

HABWithout inspection hole F-series 50qmm M10 VZ

Manufacturer

HAN706F10

GTIN4012078469098

Connection thread size (metric)10

Connection angle180° (horizontal)

Number of mounting holes1

Flange shapeRing shape

IsolatedNo

Leader ClassDifferent

With viewing holeNo

Nominal cross section50 mm²

SurfaceTinned

Narrow flange designNo

MaterialCopper

Klauke 706F10 without inspection hole F-series 50qmm M10 VZ tubular cable lug

Klauke 706F10 without inspection hole F-series 50qmm M10 VZ tubular cable lug

Price on request

€2.12

€0

Into a basketIn the basketGo
