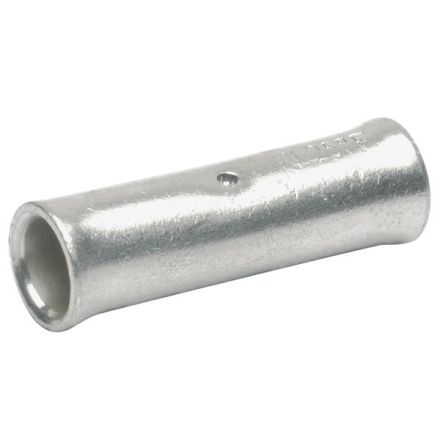

Klauke 724F for fine-stranded conductors 25qmm tinned butt connector

Klauke 724F for fine-stranded conductors 25qmm tinned butt connector

In stock

SKU: 556964

Price on request

€1.71

€0

Into a basketIn the basketGo

Overview

For fine and extra fine wire conductors. According to DIN 46247 Part 3. With groove embossing for improved contact properties. Steel nickel-plated.

Property	Value
Nominal cross section:	25 mm²
Suitable for fine-stranded conductors:	yes
Insulation:	without
Design:	Normal design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	no
Suitable for enamelled wire:	no
Material:	copper
Suitable for solid conductors:	no
Suitable for flat conductors:	no
Number of branches:	2
Sleeve shape:	long
Suitable for round conductors:	yes
Surface:	tinned
AWG range:	3
For tensile connections:	no
Oil stop/centre bar:	no
Voltage series:	up to 10 kV
Connection type:	Butt connector

Characteristics

Oil stop/central barNo

Voltage seriesUp to 10 kV

Number of branches2

HABFor fine-stranded conductors 25qmm tinned

Minimal order50 pcs

Manufacturer

HAN724F

GTIN4012078387125

AWG range3

VersionStandard version

For tensile connectionsNo

Suitable for flat conductorsNo

Suitable for enamelled wireNo

Suitable for round conductorsYes

Suitable for fine-stranded conductorsYes

Suitable for high temperatures (up to 650 °C)No

Suitable for solid laddersNo

Suitable for stranded conductorsNo

Sleeve shapeLong

IsolationWithout

Nominal cross section25 mm²

SurfaceTinned

Connection typeButt connectors

MaterialCopper

Klauke 724F for fine-stranded conductors 25qmm tinned butt connector

Klauke 724F for fine-stranded conductors 25qmm tinned butt connector

Price on request

€1.71

€0

Into a basketIn the basketGo
