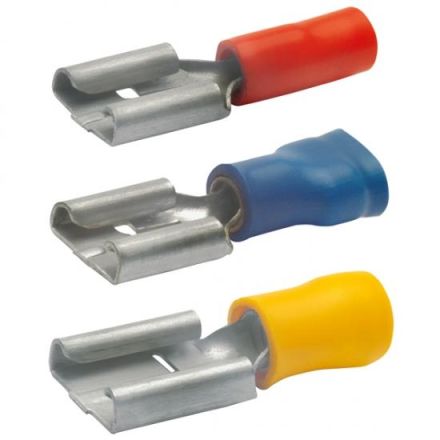

Klauke 8203 n. DIN 4.8x0.8mm 0.5-1qmm red VZ insulated flat receptacle

Klauke 8203 n. DIN 4.8x0.8mm 0.5-1qmm red VZ insulated flat receptacle

In stock

SKU: 555463

Price on request

€0.20

€0

Into a basketIn the basketGo

Overview

For fine and extra fine stranded conductors. According to DIN 46245 Part 2. Insulated, halogen-free. Color coding depending on cross-section. Temperature resistance at 70° C. Tinned. Material CuZn (brass). Insulating sleeve: PVC.

Property	Value
Nominal cross section:	0.5 to 1 mm²
Plug dimensions:	flat 4.8x0.8 mm
Insulation material:	Polyvinyl chloride (PVC)
Design:	Sleeve
Insulation color:	red
Insulation:	partially insulated
Material:	Brass
With locking lug:	no
With tap:	no
Maximum current (Imax):	12.75 A

Characteristics

Color of the insulationRed

Material of the insulationPolyvinyl chloride (PVC)

Maximum current (Imax)12.75 A

With tap-offNo

With locking lugNo

Plug dimensionsFlat 4.8x0.8 mm

HABN. DIN 4.8x0.8mm 0.5-1qmm red VZ insulated.

Minimal order100 pcs

Manufacturer

HAN8203

GTIN4012078025218

VersionSleeve

IsolationPartially insulated

Nominal cross section0.5 to 1 mm²

MaterialBrass
