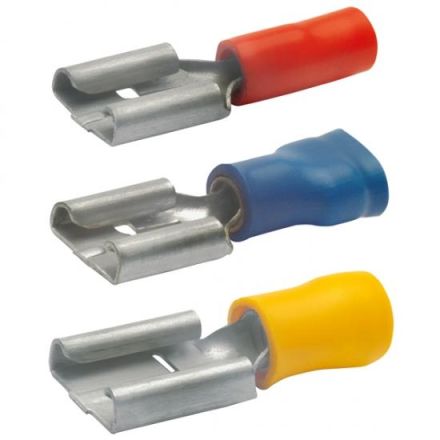

Klauke 8303 n. DIN 4.8x0.8mm 1.5-2.5qmm blue VZ iso. flat receptacle

Klauke 8303 n. DIN 4.8x0.8mm 1.5-2.5qmm blue VZ iso. flat receptacle

In stock

SKU: 555267

Price on request

€0.20

€0

Into a basketIn the basketGo

Overview

For fine and extra fine stranded conductors. According to DIN 46245 Part 2. Insulated, halogen-free. Color coding depending on cross-section. Temperature resistance at 70° C. Tinned. Material CuZn (brass). Insulating sleeve: PVC.

Property	Value
Nominal cross section:	1.5 to 2.5 mm²
Plug dimensions:	flat 4.8x0.8 mm
Insulation material:	Polyvinyl chloride (PVC)
Design:	Sleeve
Insulation color:	blue
Insulation:	partially insulated
Material:	Brass
With locking lug:	no
With tap:	no
Maximum current (Imax):	18.75 A

Characteristics

Color of the insulationBlue

Material of the insulationPolyvinyl chloride (PVC)

Maximum current (Imax)18.75 A

With tap-offNo

With locking lugNo

Plug dimensionsFlat 4.8x0.8 mm

HABN. DIN 4.8x0.8mm 1.5-2.5qmm blue VZ iso.

Minimal order100 pcs

Manufacturer

HAN8303

GTIN4012078025270

VersionSleeve

IsolationPartially insulated

Nominal cross section1.5 to 2.5 mm²

MaterialBrass

Klauke 8303 n. DIN 4.8x0.8mm 1.5-2.5qmm blue VZ iso. flat receptacle

Klauke 8303 n. DIN 4.8x0.8mm 1.5-2.5qmm blue VZ iso. flat receptacle

Price on request

€0.20

€0

Into a basketIn the basketGo
