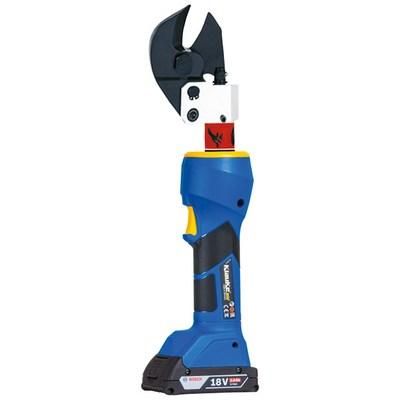

Klauke ES20CFB Cordless Mini Acsr Next Gen 20Mm Battery 2Ah Cutting Tool

In stock
SKU: 559580
€2,322.51
Into a basketIn the basketGo

Overview

For cutting Al/St cables (ACSR) in accordance with DIN EN 50182, solid Al/Cu cables in accordance with 0295 Class 1 and Cu lamella rails. Extremely robust design with low weight. Slim cutting head - ideal in critical space conditions. Powerful 18 V lithium-ion battery. Open cutting head, rotatable. One-button operating concept for controlling all tool functions. Ergonomic 2-component housing with soft inserts for comfortable and safe one-handed operation. Evaluation function via Bluetooth, optical interface and USB adapter. Balanced center of gravity for easy handling and fatigue-free working. LED for work area lighting. Powerful 18 V lithium-ion battery with high capacity and extremely short charging time. Powerful motors for maximum working speed. Energy saving function through motor shutdown after cutting has been completed. Quick motor stop for high user safety. Automatic return after cut is completed. Manual reversing if required. Manual reversing stop (MRS) for efficient working. LED display for showing tool data. Multifunctional LED for maintenance display, battery charge level display and for data transfer via USB adapter. Environmentally friendly hydraulic oil, rapidly biodegradable. Scope of delivery Battery 18 V / 2.0 Ah, Li-Ion (36 Wh) (RALB1EU), quick charger for 18V Li-Ion batteries, 230 V (LGLB1EU), plastic case (KK50L).

Feature Value
Total length: 378 mm
With impact protection: no
Handle design: 2-components
Suitable for fine-stranded conductors: no
Suitable for solid Conductor: no
Suitable for multi-wire conductors: no
With stripping function: no
Cutting jaws replaceable: no
Suitable for max. cable diameter: 20 mm
Suitable for steel wire braiding: no
Cutting head replaceable: yes
Design/operation: battery-hydraulic
Protective insulated 1000 V: no
Insulated: no

Characteristics

Version/operationBattery-hydraulic
HABBatteryhy. Mini Acsr Next Gen 20Mm Battery 2Ah
ManufacturerKlauke
HANES20CFB
GTIN4012078878395
Suitable for fine-stranded conductorsNo
Suitable for solid laddersNo
Suitable for stranded conductorsNo
Overall length378 mm
Handle design2 components
IsolatedNo
Protectively insulated 1000 VNo
