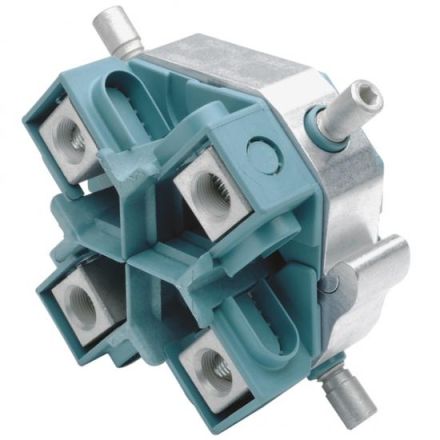

Klauke KSK1504 for four-wire cables with shear screw cable branch screw terminal.

In stock
SKU: 556135
€62.33
Into a basketIn the basketGo

Overview

Suitable for main and branch conductors made of Al and Cu. The main conductor does not need to be cut through. It is used in the energy supply sector, for example. Can then be installed under voltage using appropriate fully insulated assembly tools. With shear screws for the main conductor, non-detachable.

Property Value
Number of conductors per cable: 4
Nominal cross-section of branch conductor, RE: 6 to 50 mm²
Nominal cross-section of branch conductor, SM: 6 to 35 mm²
Nominal cross-section of main conductor, SM: 70 to 150 mm²
Nominal cross-section of branch conductor, RM: 6 to 35 mm²
Width: 46 mm
Installation under voltage possible: yes
Nominal cross-section branch conductor, SE: 6 to 50 mm²
Nominal cross-section main conductor, SE: 70 to 150 mm²
Length: 107 mm

Characteristics

HABFor four-wire cable with shear screw
ManufacturerKlauke
HANKSK1504
GTIN4012078069373
Width46 mm
Length107 mm
