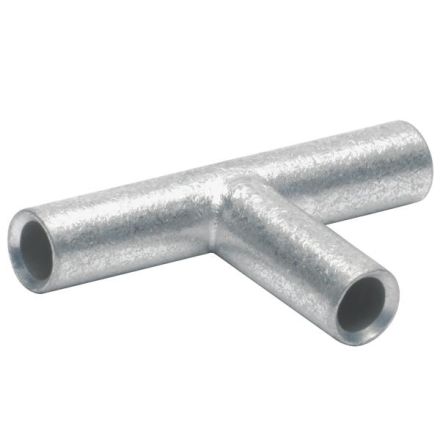

Klauke TV4 T-connector standard version 4qmm VZ butt connector

In stock

SKU: 557012

Price on request

€2.69

€0

Overview

For multi-wire conductors e.g. 0295 class 2. For rounded multi-wire sector conductors. Special design for cable branches. Optimum material and pressing properties due to annealed material. Precise end processing for easy cable insertion. Galvanically tinned to protect against corrosion. Material Cu according to EN 13600.

Property	Value
Nominal cross section:	4 mm²
Suitable for fine-stranded conductors:	no
Insulation:	without
Design:	UL design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	yes
Suitable for enamelled wire:	no
Material:	copper
Suitable for solid conductors:	no
Suitable for flat conductors:	no
Number of branches:	3
Sleeve shape:	long
Suitable for round conductors:	yes
Surface:	tinned
AWG range:	11
For tensile connections:	no
Oil stop/centre bar:	no
Voltage range:	up to 10 kV
Connection type:	T-connector
