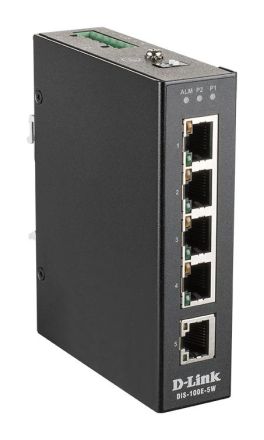

D-Link DIS-100E-5W 5x 10/100Mbit/s TP 5-Port Unmanaged Layer2

In stock
SKU: 625487
€125.79
Into a basketIn the basketGo

Overview

Unmanaged Plug and Play
Plug and play. The DIS-100E-5W reliably forwards Ethernet frames.

Fast Ethernet connection
Equipped with 5x 10/100Base-T (X) ports to match your network layout.

Officially validated
Validations for vibration, shock and drop resistance as well as electromagnetic compatibility to ensure maximum network availability in a wide range of deployment scenarios, including public space surveillance, factory automation and outdoor Wi-Fi.

Withstands extreme temperatures
Works smoothly in numerous industrial and other demanding environments with temperatures from -40 °C to +75 °C. Suitable for cold starts from -40 °C.

Robust construction
The robust housing is designed to ensure that your network remains reliably protected and resilient. That's why we offer a 5-year D-Link warranty on every DIS switch.

Quick setup
With its DIN rail clip, the switch can be installed immediately. Wall mounting is also possible

Fanless design
As there are no moving parts inside, downtime and maintenance times are reduced. The robust housing has been optimized for heat dissipation.

PropertyValue
Switch Type:Unmanaged
Switch Tier:L2
Number of Basic Switching RJ-45 Ethernet Ports:5
Basic Switching RJ-45 Ethernet Ports Type:Fast Ethernet (10/100)
Relay Output:1
Network Standard:IEEE 802.3x
10G Support:No
Copper Ethernet Cabling technology:10BASE-T,100BASE-TX,100BASE-T
Full duplex:Yes
Support data flow control:Yes
Broadcast storm control:Yes
Auto MDI/MDI-X:Yes
Auto-negotiation function:Yes
MAC address table:1000 Registrations
Store-and-Forward:Yes
Rack mountable:Yes
Stackable:Yes
Product color:Black
International Protection Rating (IP Code):IP30
Wall mountable:Yes
DIN rail mountable:Yes
Certification:UL 60950 1
CE
FCC
Plug & Play:Yes
Mean time between failures (MTBF) :219000 h
Shipping carton height:20 cm
Shipping carton width:30.5 cm
Shipping carton length:43 cm
Net weight of shipping carton:5.78 kg
Quantity per shipping carton:10 piece(s)
Gross weight of shipping carton:5.79 kg
Gross pallet weight (air) :226.4 kg
Number of cartons per pallet (air) :36
Number per Pallet (air) :360 pcs(s)
Pallet length :120 cm
Pallet width :110 cm
Pallet height (air) :135 cm
Pallet gross weight (sea) :330.7 kg
Number of cartons per pallet (sea) :54
Number per pallet (sea) :540 pcs(s)
Pallet height (sea) :195 cm
DC input voltage :12 - 58 V
Power consumption (in operation) :0.95 W
Power consumption (max.) :1.56 W
Power over Ethernet (PoE) :No
Temperature range in operation:-40 - 75 °C
Temperature range during storage:-40 - 85 °C
Humidity in operation:5 - 95%
Width:29.1 mm
Depth:89.4 mm
Height:109.2 mm
Weight:320 g
Packaging width:140 mm
Packaging depth:178 mm
Packaging height:83 mm
Package weight:488 g

Characteristics

Wall mountingYes
HAB5x 10/100Mbit/s TP
ManufacturerD-Link
HANDIS-100E-5W
GTIN0790069441271
Width29.1 mm
Weight320g
Height109.2 mm
Depth89.4 mm
