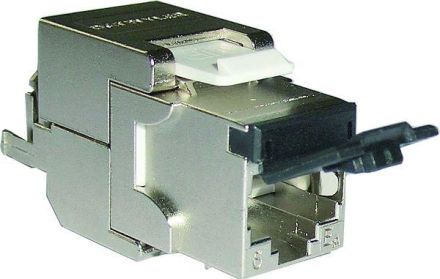

unilan RJ45 module KS-T 6A 1/8 toolless shielded Cat.6A / EA The KS-T 6A toolless module can be wired without special tools. It is specified according to the standard TIA/EIA 568-B.2-10:2008 for Cat.6A up to 500 MHz. When connected to Cat.7 data cables, the internationally standardized channel requirements of ISO/IEC 11801:2002/Amd.1:2008 for transmission class EA are exceeded. Data transmissions up to 10 Gigabit Ethernet according to IEEE 802.3an can be transmitted safely with large electrical reserves. Conductor diameter solid 0.40mm (AWG 26) to 0.65mm (AWG 22) Conductor diameter stranded wire AWG26/7 with 7-wire bare copper strand.
