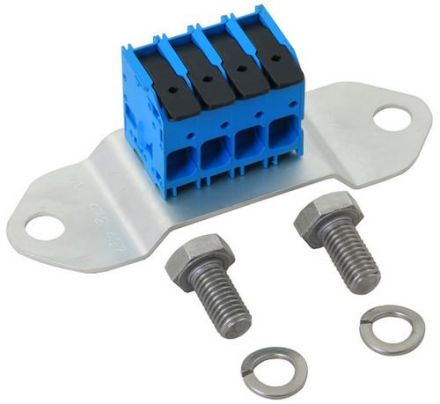

Dehn & Söhne 472497 Push-in adapter PAS EX CC for PA rail EX area

In stock

SKU: 1029328

Price on request

€54.87

€0

Overview

Push-in adapter for contacting flexible cables 4x 4-16mm on PAS EX... for use in potentially explosive areas Ex zones 1 and 2 (gases, vapors, mists) and Ex zones 21 and 22 (dust). Can be used up to explosion group IIC (safety factor 1). Can be used up to temperature class T4. Screw locking against self-loosening according to 0185-305-3 supplement 2. Indoor use permitted.

Property	Value
Connectable conductor cross-section, single-wire:	4.0 to 16.0 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	4.0 to 16.0 mm²
Connectable conductor cross-section, multi-wire:	4.0 to 16.0 mm²
Conductor connection type:	Spring-loaded connection
Number of electrical connections:	4
Number of levels:	1
Fastening type:	screws
Rated voltage:	800 V
Rated impulse voltage:	8 kV
Housing color:	blue
Height:	33 mm
Overvoltage category:	III
Material of the connection surface:	other
Material of the insulating body:	Polyamide (PA)
Angle of circuit board/conductor connection:	0°/180° (horizontal)
