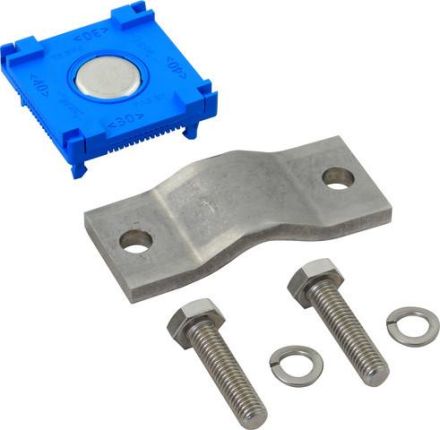

Connection set FL 30/40mm for PAS EX 11AP M10 V2A and PAS EX 7AP M10 V2A. For integrating metallic conductors and cables into the lightning protection equipotential bonding according to 0185-305-3 (IEC 62305-3) as well as the protective and functional equipotential bonding according to DIN0100 Part 410/540. Use in Ex zones 1 and 2 (gases, vapors, mists) and Ex zones 21 and 22 (dusts). Explosion group IIC (safety factor 1) according to CLC 50703-2. Corresponds to temperature class T4 and DIN EN 62561-1 (VDE 0185-561-1). Lightning current carrying capacity class H (100kA). Screw locking against self-loosening according to 0185-305-3 Supplement 2. Can be used both indoors and outdoors.
