Dehn & Söhne 540111 for Ericsson 2x BRS 540100 1x EV 472349 mounting set

In stock

SKU: 1060839

Price on request

€52.27

€0

Overview

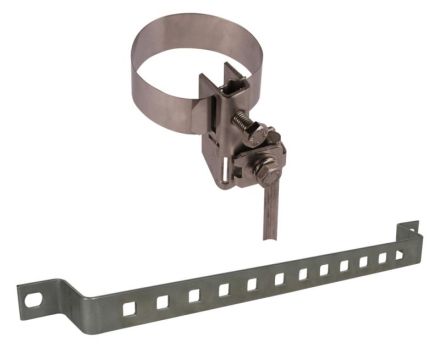

Mounting set with direct clamping of round material and single/multi-wire conductors, can be combined with UNI earthing terminal (item no. 540 263) and/or universal clamping screw connector (item no. 540 122).

Property	Value
Weight:	0.65
Weight unit:	KG
Surface:	untreated
Material:	stainless steel 304 (V2A)
Clamping range:	16.0 - 168.0 mm
Cable holder diameter:	6.0 - 8.0 mm
Min. clamping range in inches:	3/4 inch
Max. Clamping range inches:	6 inches
Short description:	Set for Ericsson 2 x BRS 540100 1 x EV 472349
