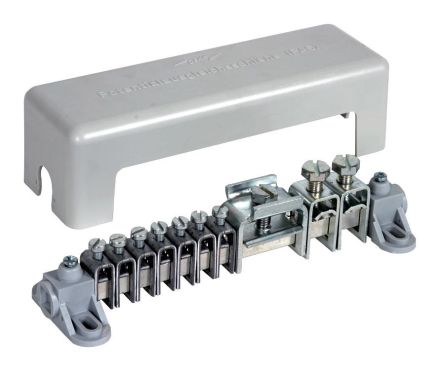

Dehn & Söhne 563010 Ms/gal SN 100qmm PAS 10RK equipotential bonding bar

In stock
SKU: 667540
€26.73
Into a basketIn the basketGo

Overview

Equipotential bonding bar in accordance with DIN EN 62561-1, for protective and functional equipotential bonding in accordance with DIN0100-410/540 (main earthing bar) and lightning protection equipotential bonding in accordance with DIN EN 62305-3 (VDE 0185-305-3). Version A, tested in accordance with DIN0609, terminal blocks made of St/gal Zn, rail brackets and cover made of plastic, gray (halogen-free), cover can be sealed and labeled.

PropertyValue
Length:200 mm
Width:65 mm
Height:60 mm
Design:Modular structure
Version:With cover
Material of contact rail:Brass
Surface of contact rail:Electroplated
Material of terminal:Steel
Surface of terminal:Electroplated
Number of connections for flat conductors up to 30 mm:1
Number of connections for cables up to 25 mm² rigid:7
Number of connections for cables up to 95 mm² rigid:2

Characteristics

HAB563010 Ms/gal SN 100qmm PAS 10RK
ManufacturerDehn & Söhne
HAN563010
GTIN4013364027800
VersionWith cover
DesignModular structure
Width65 mm
Height60 mm
Length200 mm
