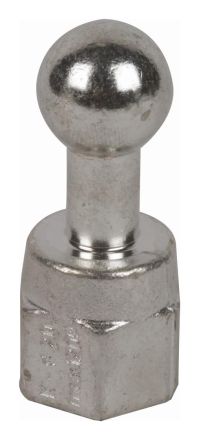

Dehn & Söhne 755200 KFP 25 M12 with internal thread M12 ball fixing point straight

In stock
SKU: 667571
€22.70
Into a basketIn the basketGo

Overview

Straight ball fixed point with internal thread as phase-side and earth-side connection point according to DIN0683-100 (EN/IEC 61230) on the conductor and earthing system. High mechanical strength due to chipless thread. Therefore also suitable as cable lug and busbar screw connection according to DIN 43673-1.

PropertyValue
Connection of the earthing device:ball fixed point 25 mm
Design:straight
Max. short-circuit current:42.0 kA
Mounting type:with internal thread
Max. copper cable cross-section:150 mm²
Fixed point diameter:25 mm

Characteristics

HAB755200 KFP 25 M12 with internal thread M12
ManufacturerDehn & Söhne
HAN755200
GTIN4013364000087
DesignStraight
Mounting typeWith internal thread
