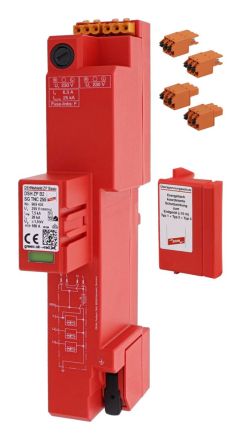

Dehn & Söhne 909430 DEHNshield DSH ZP B2 SG TNC 255 for TNC combined arrester type 1+2

In stock

SKU: 704923

Price on request

€251.82

€0

Overview

909430 DEHNshield DSH ZP B2 SG TNC 255 for TNC combined arrester type 1+2 Manufacturer article number: 909430, Manufacturer article name: DEHNshield DSH ZP B2 SG TNC 255 for TNC

Property	Value
Maximum continuous voltage AC:	255 V
Lightning impulse current (10/350 µs):	22.5 kA
Protection level:	1.5 kV
Number of poles:	3
Nominal voltage AC:	230 V
Signaling on the device:	optical
Network type TN-CS:	no
Energetically coordinated protective effect for End device:	yes
Mounting type:	Busbar
Network type TT:	no
Specific energy (W/R):	14.06 kJ/Ohm
Follow current extinguishing capacity:	25 kA
Max. conductor cross-section rigid (single/multi-wire):	25 mm²
Network type TN-C:	yes
Network type TN-S:	no
Protection class (IP):	IP30
