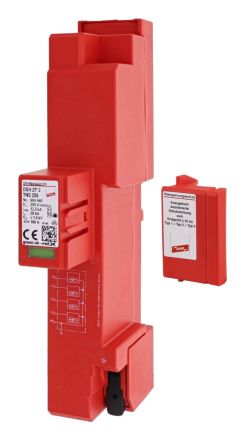

Dehn & Söhne 909540 DEHNshield DSH ZP 2 TNS 255 for TN-S combined arrester type 1+2

In stock
SKU: 704933
€391.91
Into a basketIn the basketGo

Overview

Tested combined arrester type 1+type 2+type 3 according to DIN EN 61643-11 for TN-S systems (4+0 circuit), can be installed completely without tools using Click+Power connection technology for the 40 mm busbar system and push-in earthing terminal, for use in the main power supply system according to DIN0100-443 in buildings with an external lightning protection system (lightning protection class III/IV). A suitable cover clip according to DIN0603-1 for every commercially available meter panel is included in the scope of delivery.

PropertyValue
Maximum continuous voltage AC:255 V
Lightning impulse current (10/350 µs):50 kA
Number of poles:4
Nominal voltage AC:230 V
Signaling on the device:optical
Energetically coordinated protective effect for the end device:yes
Mounting type:busbar
Protection level N-PE:1.5 kV
Network type TT:no
Specific energy (W/R):39.06 kJ/Ohm
Follow current extinguishing capacity:25 kA
Max. conductor cross-section rigid (single/multi-wire):25 mm²
Network type TN-S:yes
Protection level L-PE:1.5 kV
Protection class (IP):IP30

Characteristics

Max. conductor cross-section rigid (single/multi-wire)25 mm²
Lightning surge current (10/350 µs)50 kA
Network form TTNo
Network type TN-SYes
Protection level N-PE1.5 kV
HABDEHNshield DSH ZP 2 TNS 255 for TN-S
ManufacturerDehn & Söhne
HAN909540
GTIN4013364424784
Highest continuous voltage AC255V
Mounting typeBusbar
Nominal voltage AC230V
Number of poles4
IP protection)IP30
Signaling on the deviceOptical
