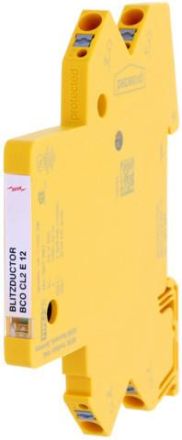

Dehn & Söhne 927987 Surge arrester BCO CL2 E 12

In stock
SKU: 1029456
€38.72
Into a basketIn the basketGo

Overview

Space-saving, compact surge arrester with a width of 6 mm and push-in connection technology with status display. Finely limiting, single-stage surge protection with powerful diodes to protect 2 individual wires with a common reference potential and asymmetrical interfaces.

PropertyValue
Signaling on the device:optical
Mounting type:DIN rail TH35
Nominal discharge current (8/20):3 kA
Nominal load current:10 A
Maximum continuous voltage DC:15 V
Maximum continuous voltage AC:10.6 V
Protection level wire/wire:80 V
Protection level wire/earth:50 V
Arrester monitoring:yes
Nominal voltage DC:12.0 V
Limit frequency:0.6 MHz
Lightning impulse current (10/350 µs):0.4 kA

Characteristics

Lightning surge current (10/350 µs)0.4 kA
Highest continuous voltage DC15 V
Nominal load current10 A
Nominal voltage DC12.0 V
Protection level wire/wire80 V
Protection level wire/earth50 V
Limit frequency0.6 MHz
HABBCO CL2 E 12
ManufacturerDehn & Söhne
HAN927987
GTIN4013364485754
Highest continuous voltage AC10.6V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)3kA
Signaling on the deviceOptical
Dehn & Söhne 927987 Surge arrester BCO CL2 E 12
Dehn & Söhne 927987 Surge arrester BCO CL2 E 12
€38.72
Into a basketIn the basketGo
