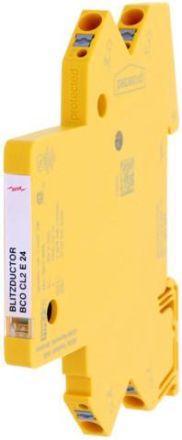

Dehn & Söhne 927988 Surge arrester BCO CL2 E 24

In stock
SKU: 1029454
€39.10
Into a basketIn the basketGo

Overview

Space-saving, compact surge arrester with a width of 6 mm and push-in connection technology with status display. Finely limiting, single-stage surge protection with powerful diodes to protect 2 individual wires with a common reference potential and asymmetrical interfaces.

PropertyValue
Signaling on the device:optical
Mounting type:DIN rail TH35
Nominal discharge current (8/20):1.2 kA
Nominal load current:10 A
Maximum continuous voltage DC:33 V
Maximum continuous voltage AC:23 V
Protection level wire/wire:100 V
Protection level wire/earth:55 V
Arrester monitoring:yes
Nominal voltage DC:24.0 V
Limit frequency:1.5 MHz
Lightning impulse current (10/350 µs):0.2 kA

Characteristics

Lightning surge current (10/350 µs)0.2 kA
Highest continuous voltage DC33 V
Nominal load current10 A
Nominal voltage DC24.0 V
Protection level wire/wire100 V
Protection level wire/earth55 V
Limit frequency1.5 MHz
HABBCO CL2 E 24
ManufacturerDehn & Söhne
HAN927988
GTIN4013364485747
Highest continuous voltage AC23V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)1.2kA
Signaling on the deviceOptical
