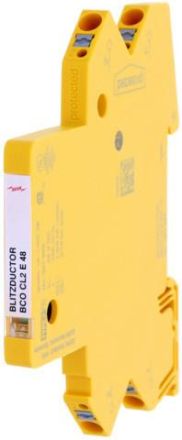

Dehn & Söhne 927989 Surge arrester BCO CL2 E 48

In stock
SKU: 1029455
€38.03
Into a basketIn the basketGo

Overview

Space-saving, compact surge arrester with a width of 6 mm and push-in connection technology with status display. Finely limiting, single-stage surge protection with powerful diodes to protect 2 individual wires with a common reference potential and asymmetrical interfaces.

PropertyValue
Signaling on the device:optical
Mounting type:DIN rail TH35
Nominal discharge current (8/20):0.8 kA
Nominal load current:10 A
Maximum continuous voltage DC:58 V
Maximum continuous voltage AC:41 V
Protection level wire/wire:180 V
Protection level wire/earth:90 V
Arrester monitoring:yes
Nominal voltage DC:48.0 V
Limit frequency:2.5 MHz
Lightning impulse current (10/350 µs):0.18 kA

Characteristics

Lightning surge current (10/350 µs)0.18 kA
Highest continuous voltage DC58 V
Nominal load current10 A
Nominal voltage DC48.0 V
Protection level wire/wire180 V
Protection level wire/earth90 V
Limit frequency2.5 MHz
HABBCO CL2 E 48
ManufacturerDehn & Söhne
HAN927989
GTIN4013364485761
Highest continuous voltage AC41V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)0.8kA
Signaling on the deviceOptical
