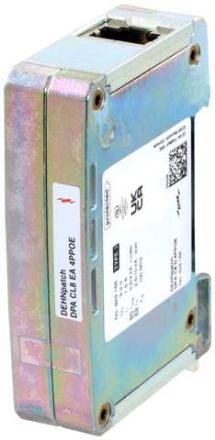

Dehn & Söhne 929166 Lightning arrester DEHNpatch up to 1GBit

In stock
SKU: 1029365
€59.25
Into a basketIn the basketGo

Overview

Universal, space-saving lightning current arrester with a width of 19 mm and RJ45 connection technology for lightning protection equipotential bonding. Protection of applications in structured cabling according to Class D up to 100 MHz, e.g. Industrial Ethernet, data distributors, digital camera systems, Power over Ethernet (IEEE 802.3 compliant up to 4PPoE) and generally Ethernet-based interfaces. Protection of all wire pairs through powerful gas discharge arresters. Fully shielded adapter version with RJ45 sockets for DIN rail mounting. With additional screw connection on the housing side for optional earth connection.

PropertyValue
Mounting type:DIN rail TH35
Nominal discharge current (8/20):10 kA
Nominal load current:1.5 A
Connection 1:RJ45
Maximum continuous voltage DC:58 V
Protection level wire/wire:700 V
Protection level wire/earth:600 V
Arrester monitoring:no
Nominal voltage DC:3.3 V
Cut-off frequency:100 MHz
Lightning impulse current (10/350 µs):4 kA

Characteristics

Lightning surge current (10/350 µs)4 kA
Connection 1RJ45
Highest continuous voltage DC58 V
Nominal load current1.5 A
Nominal voltage DC3.3 V
Protection level wire/wire700 V
Protection level wire/earth600 V
Limit frequency100 MHz
HAB929166 DEHNpatch up to 1GBit
ManufacturerDehn & Söhne
HAN929166
GTIN4013364472914
Mounting typeDIN rail TH35
Nominal discharge current (8/20)10kA
