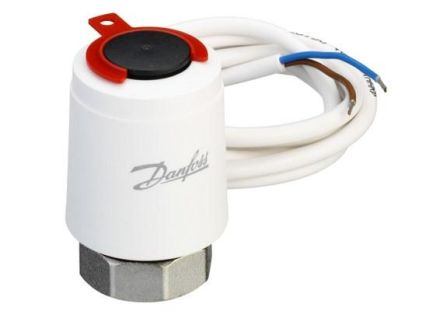

Devi 088H3143 TWA-K/NO normally open actuator

In stock

SKU: 549373

Price on request

€29.14

€0

Overview

Thermal actuator, without manual adjustment, with assembly aid and position indicator, suitable for housing with threaded connection M30 x 1.5, time for a full spindle movement: approx. 3 min., ambient temperature: 0-60°C, cable length: 1.2m, IP 41, power supply: 230V/50Hz, power consumption: 2W, closed when de-energized

Property	Value
Suitable for valves:	no
Suitable for ventilation fittings:	no
Control type on/off:	no
Control type modulating:	no
Control type split-range:	no
With head flange direct mount according to ISO 5211:	no
With zero voltage return:	no
Voltage-free when closed:	no
Automatic Stroke detection:	no
Adjustable status message:	no
Auxiliary contacts:	no
Auxiliary contacts optional:	no
Adjustable working range:	no
With mechanical level indicator:	no
Manual operation:	no
Potential-free switching contact:	no
Self-adjustable stroke length:	no
With safety function:	no
Explosion-proof:	no
