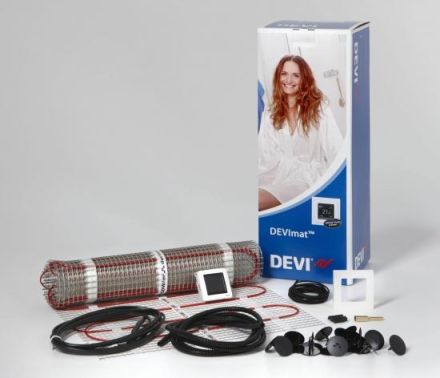

Thin bed set with touch thermostat, flexible sensor protection tube DN10, sensor sleeve made of brass, plastic nails, assembly instructions. The self-adhesive thin bed heating mat with a connection cable is ready for installation and was specially developed for installation in leveling compound or flexible adhesive directly below the floor covering. Due to the low installation height of only 3.2 mm, it is ideal for the renovation and modernization of bathrooms, showers, kitchens, etc. This floor temperature control system is particularly suitable for subsequent installation in angled and/or large rooms, as there is no need to run the second connection back. The heating cable with additional protective braiding for use with the residual current circuit breaker is attached to a plastic net. The length of the connecting cables is 4.0 m. PTC thermistor: 1 x 4m, 1.0mm, voltage: 230 V, nominal limit temperature: 120°C, specific heating output: 150 W/m, length load: 11W, insulation: PVDF / FEP, resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, smallest bending radius: 6 x dA, calculation width 50 cm, delivery width: 48 cm, mat height: 3.2 mm, protection class: IPX7, approval: EN 60335-2-96, area 6.0 m, 0.5 x 12.0 m
| Property | Value |
| Length: | 12000 mm |
| Width: | 500 mm |
| Thickness: | 3.5 mm |
| Connected load: | 900 W |
| Area: | 6 m |
| Power: | 150 W/m |
| Application: | Underfloor heating |
| Heating conductor load: | 11 W/m |
| With carrier mat: | yes |
| Fixation of the Heating conductor: | glued on |
| Number of PTC thermistors: | 1 |
| Length of PTC thermistors: | 4000 mm |
| Suitable for damp rooms: | yes |
| With controller: | yes |
| Connection voltage: | 230 V |
| Suitable as roof heating: | no |
| Suitable as open space heating: | no |
| With floor temperature sensor: | yes |
| With room thermostat: | yes |
| Self-adhesive: | yes |
