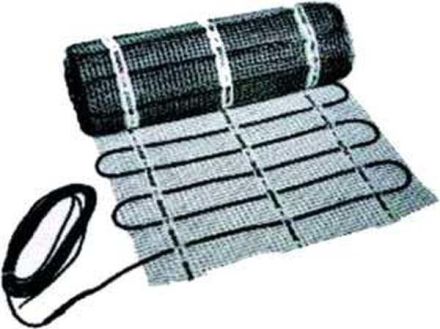

Heating mat with a connecting cable suitable for installation in or under the screed. Use in dry, damp or wet rooms. With additional protective braiding for use with the FI protection circuit. This heating mat system is particularly suitable for installation in angled and/or large areas, as there is no need to return the second connection. Including factory-fitted waterproof sleeves and a 6 m long PTC thermistor, heating cable according to IEC 60800, voltage: 230 V, nominal limit temperature: 80°C, specific heating output: 150 W/m, resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, external diameter: 7 mm, smallest bending radius: 5 x dA, protection class: IP X7, area 4.8 m, 0.75 x 6.4 m
