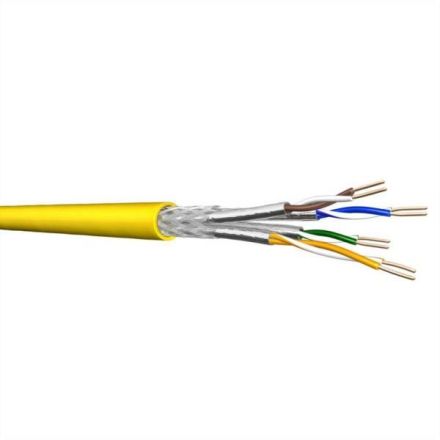

Draka Comteq Cat.8.2 S/FTP 4P22 2000MHz data cable Dca UC Future yellow

Draka Comteq Cat.8.2 S/FTP 4P22 2000MHz data cable Dca UC Future yellow

In stock

SKU: 899808

Price on request

€1.78

€0

Overview

For high-end applications, the UCFUTURE COMPACT Cat8.2 cable allows the highest transmission rates of up to 40Gbit/s. Draka data cable UC2000 or UCFUTURE COMPACT22 for Cat.8.2 cabling. Outer diameter 8.5 mm. Fire load 674 MJ/km. Weight 80 kg/km. . Structure. Conductor: Cu wire, bare Ø 0.64 mm (AWG22). Insulation: Foam-Skin polyethylene, Ø 1.6 mm. Stranding: 2 wires to a pair. Pair shielding: Aluminum-coated plastic composite film. Stranding: 4 pairs (PiMf) to the core. Overall shield: Tinned Cu braid. Protective jacket: Halogen-free, flame-retardant jacket material in accordance with EN50289-2-27, yellow RAL 1021. . Electrical properties at 20°C±5°C. Loop resistance 130 Ohm/km. Resistance asymmetry 1%. Insulation resistance (500 V) >= 5000 MOhm*km. Capacitance at 800 Hz (guide value) 43 nF/km. Capacitance asymmetry (pair/earth) <= 1200 pF/km. Relative propagation speed approx. 73%. Delay difference <= 20 ns/100m. Test voltage (DC, 1 min) wire/wire and wire/shield: 1000 V. Coupling attenuation 85 dB.

Property	Value
Number of cores:	8
Outer diameter approx.:	8.4 mm
AWG cross-section:	22
Conductor class:	Cl.1 = single-wire
Stranding element:	pairs
Core marking:	Color
Shield over stranding element:	foil
Category:	other
Flame-retardant:	according to EN 60332-3-24
Low smoke according to EN 61034-2:	yes
Sheath color:	yellow
Conductor nominal cross-section:	0.32 mm²
Conductor diameter:	0.64 mm
Stranding:	Layers
Material of the core insulation:	Polyolefins
Number of stranding elements:	4
Shield over stranding:	Braid
Conductor surface:	bare
Protective jacket:	no
Reinforcement:	no
Jacket material:	Polyolefins
Halogen-free according to EN 60754-1/2:	yes
Halogen-free according to IEC 60754-2:	yes
Low smoke according to IEC 61034-2:	yes
Oil-resistant according to EN 60811-404:	no
Oil-resistant according to IEC 60811-404:	no
Functional integrity:	no
Permissible external cable temperature during assembly/handling:	0 to 50 °C
Permissible Cable external temperature after installation without vibration:	-20 to 60 °C
NVP value:	79 %
Specification of core insulation:	Polyethylene (PE)
Cable longitudinally watertight:	no
Cable transversely watertight:	no
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Dca
Smoke development class according to EN 13501-6:	s2
Drip behavior class according to EN 13501-6:	d1
Acid development class according to EN 13501-6:	a1
Min. permissible bending radius, flexible use with forced guidance:	84 mm
Min. permissible bending radius, flexible use/free movement:	50 mm
Min. permissible bending radius, stationary use/fixed installation:	50 mm
Laying in the ground:	no
UV-resistant:	no

Characteristics

Sheath materialPolyolefins

Outer diameter approx.8.4 mm

Oil-resistant according to EN 60811-404No

CategoryOther

Conductor nominal cross section0.32 mm²

Conductor diameter0.64 mm

HABCat.8.2 S/FTP 4P22 2000MHz

Manufacturer

HAN60050259

GTIN4065624020168

Wire number8

Functional preservationNo

Leader ClassKl.1 = single wire

Coat colorYellow

UV-resistantNo
