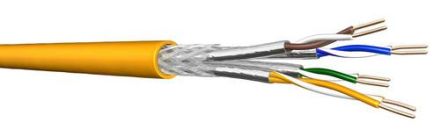

Draka Comteq Cat7A 1500MHz S/FTP LSHF-FR+ B2cas1d0 data cable UC1500 SS22 yellow B2ca

In stock
SKU: 899862
€1.75
Into a basketIn the basketGo

Overview

Installation cable, S/FTP AWG22/1, Application areas primary (campus), secondary (riser), tertiary (horizontal), IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T, , 25GBase-T up to 30m in accordance with ISO/IEC TR 11801-9905, IEEE 802.5 ISDN, TPDDI, ATM, CATV, broadband video, Power over Ethernet (PoE) / PoE+

PropertyValue
Outer diameter approx.:7.8 mm
Sheath color:yellow
Reinforcement:no
Sheath material:polyolefins
Flame retardant:according to EN 60332-3-24
Low smoke according to EN 61034-2:yes
Functional integrity:no
Halogen-free according to EN 60754-1/2:yes
Oil resistant according to EN 60811-404:no
Specification of sheath material:other
Longitudinally watertight cable:no
Transversely watertight cable:no
Fire behavior class according to EN 13501-6:B2ca
Smoke development class according to EN 13501-6:s1a
Dripping behavior class according to EN 13501-6:d1
Acid development class according to EN 13501-6:a1
UV-resistant:no
Min. permissible bending radius, stationary use/permanently installed:46 mm
Laying in the ground:no

Characteristics

Sheath materialPolyolefins
Outer diameter approx.7.8 mm
Oil-resistant according to EN 60811-404No
HABCat7A 1500MHz S/FTP LSHF-FR+ B2cas1d0
ManufacturerDraka Comteq
HAN60069437
GTIN8717511612425
Functional preservationNo
Coat colorYellow
UV-resistantNo
