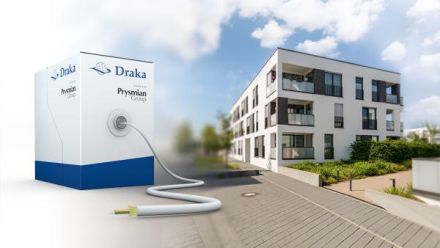

Draka Comteq idrop 900 I-VH 4 G.657A2 250m fiber optic indoor cable with glass fibers

In stock
SKU: 899860
€1.32
Into a basketIn the basketGo

Overview

DIN designation: I-VHLWL cable in mini breakout design for the optical subscriber connection. The cable is metal-free with a tensile strength of 500N. The sheath is made of halogen-free, flame-retardant material according to IEC 60332-1, IEC 60332-3-24, IEC 60754-2, IEC 61034, EN 50399 and Eurofire class Dca s2d2a1. The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-2.

PropertyValue
Outer diameter approx.:4.5 mm
Sheath color:white
Fiber type:Singlemode 9/125
Core type:Full-loader
Number of fibers per core:4
With strain relief:yes
With rodent protection:no
Reinforcement:no
Sheath material:Polyolefins
Cable metal-free:yes
Flame-retardant:according to EN 60332-1-2
Low smoke according to EN 61034-2:no
Functional integrity:no
Chemically resistant:no
Blow-in:no
Number of fibers:4
Oil-resistant according to EN 60811-404:no
Category:OS2
Specification Sheath material:other
Cable longitudinally watertight:no
Cable transversely watertight:no
Fire behavior class according to EN 13501-6:Dca
Smoke development class according to EN 13501-6:s2
Drip behavior class according to EN 13501-6:d2
Acid development class according to EN 13501-6:a1
UV-resistant:no
Min. permissible bending radius, stationary use/permanently installed:45 mm
Laying in the ground:no

Characteristics

Sheath materialPolyolefins
Outer diameter approx.4.5 mm
Oil-resistant according to EN 60811-404No
CategoryOS2
HABIdrop 900 I-VH 4 G.657A2 250m
Minimal order250 meters
ManufacturerDraka Comteq
HAN60096085
GTIN4065624004410
Functional preservationNo
Coat colorWhite
With strain reliefYes
UV-resistantNo
Draka Comteq idrop 900 I-VH 4 G.657A2 250m fiber optic indoor cable with glass fibers
Draka Comteq idrop 900 I-VH 4 G.657A2 250m fiber optic indoor cable with glass fibers
€1.32
Into a basketIn the basketGo
