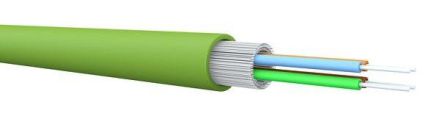

Draka Comteq JV(ZN)H 4E9/125 BBXS Fiber Optic Mini Break-Out Cable Semitight

In stock

SKU: 899700

Price on request

€0.64

€0

Overview

DIN designation: IV(ZN)H LS9 540N fiber optic cable as a mini breakout version for structured cabling. The cable is metal-free with a tensile strength of 540N. The jacket is made of halogen-free, flame-retardant material in accordance with IEC60332-1, IEC60754-1/2, IEC61034 and Eurofire class Eca. Use as a flame-retardant cable indoors. The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-2.

Property	Value
Outer diameter approx.:	5.7 mm
Sheath color:	yellow
Fiber type:	Singlemode 9/125
Core type:	Full-loader
Number of fibers per core:	1
With strain relief:	yes
With rodent protection:	no
Reinforcement:	no
Sheath material:	Polyolefins
Cable metal-free:	yes
Flame-retardant:	according to EN 60332-1-2
Low smoke according to EN 61034-2:	yes
Functional integrity:	no
Chemically resistant:	no
Blow-in:	yes
Number of fibers:	4
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	no
Category:	OS2
Specification of sheath material:	other
Cable longitudinally watertight:	no
Cable transversely watertight:	no
Fire behavior class according to EN 13501-6:	Eca
Min. permissible bending radius, stationary use/permanently installed:	57 mm
Laying in the ground:	no
