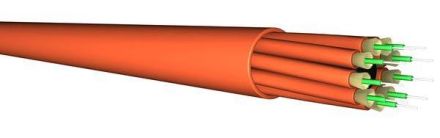

Draka Comteq JV(ZN)HH 8E 9/125 Break-Out Cable

In stock
SKU: 899714
€4.85
Into a basketIn the basketGo

Overview

DIN designation: IV(ZN)HH 2.0 fiber optic cable as a breakout version for structured cabling. The cable is metal-free with a tensile strength of 3.5kN. The jacket is made of halogen-free, flame-retardant material in accordance with IEC 60332-1, IEC 60332-3-24, IEC 60754-2, IEC 61034, EN 50399 and Eurofire class Dca s2d2a1. Use as a flame-retardant cable indoors. The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-2.

PropertyValue
Outer diameter approx.:10 mm
Sheath color:yellow
Fiber type:Singlemode 9/125
Core type:Full-loader
Number of fibers per core:1
With strain relief:yes
With rodent protection:no
Reinforcement:no
Sheath material:Polyolefins
Cable metal-free:yes
Flame-retardant:according to EN 60332-3-24
Low smoke according to EN 61034-2:yes
Functional integrity:no
Chemically resistant:no
Number of fibers:8
Halogen-free according to EN 60754-1/2:yes
Oil-resistant according to EN 60811-404:no
Category:OS2
Specification of sheath material:other
Cable longitudinally watertight:no
Cable transversely watertight:no
Fire behavior class according to EN 13501-6:Dca
Smoke development class according to EN 13501-6:s2
Drip behavior class according to EN 13501-6:d2
Acid development class according to EN 13501-6:a1
UV-resistant:no
Min. permissible bending radius, stationary use/permanently installed:100 mm
Laying in the ground:no

Characteristics

Sheath materialPolyolefins
Outer diameter approx.10 mm
Oil-resistant according to EN 60811-404No
CategoryOS2
HABJV(ZN)HH 8E 9/125
Minimal order2000 meters
ManufacturerDraka Comteq
HAN60019456
GTIN4065624016413
Functional preservationNo
Coat colorYellow
With strain reliefYes
UV-resistantNo
