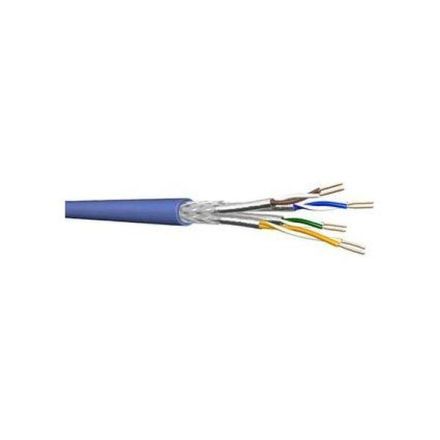

The compact Long Reach UC LR22 10 Gbit S/FTP LSHF-FR data cable offers 20% more range thanks to its outstanding cable properties (AWG22 structure and a diameter of 8.5 mm), thus enabling the reduction of technical areas and optimal use for PoE+/Next-Gen-PoE, for example for connecting WLAN structures in long factory halls. Application length 10GBase-T in class EA channel with suitable components and patch cables (see current data sheet): up to 120 m. With paired foil shield (PiMF), overall braid shield and flame-retardant, halogen-free outer jacket, blue. Euroclass Dca. Quality certificate with production monitoring: 3P and GHMT, conductor structure: 4x2xAWG22, outer Ø: 8.5 mm, NVP: 79%, weight: approx. 76 kg/km, fire load: 521 kJ/m, characteristic impedance: 100 ± 5 Ohm, signal propagation time: max. 427ns/100m, coupling resistance: 1MHz 5m /m / 10MHz 5m /m / 30MHz 10m /m, coupling resistance: 85 dB
