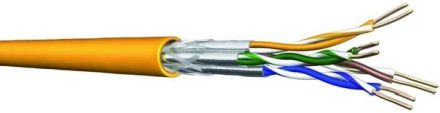

Draka Comteq UC1500 HS22 C7A S/FTP 4P LSHF-FR TR500 data cable UC1500 melon yellow Dca

Draka Comteq UC1500 HS22 C7A S/FTP 4P LSHF-FR TR500 data cable UC1500 melon yellow Dca

In stock

SKU: 899815

Price on request

€1.22

€0

Overview

Installation cable for indoor use, Cat. 7A for structured cabling with a bandwidth of 1500 MHz, foil pair shielding, braided cover

Property	Value
Number of cores:	8
Outer diameter approx.:	7.6 mm
AWG cross-section:	22
Conductor class:	Cl.1 = single-wire
Stranding element:	Pairs
Core marking:	Color
Shield over stranding element:	Foil
Category:	7A (IEC)
Flame-retardant:	according to EN 60332-3-24
Low smoke according to EN 61034-2:	yes
Sheath color:	yellow
Conductor nominal cross-section:	0.3 mm²
Conductor diameter:	0.62 mm
Stranding:	Layers
Material of the core insulation:	Polyolefins
Number of stranding elements:	4
Shield over stranding:	Braid
Conductor surface:	bare
Protective jacket:	no
Reinforcement:	no
Jacket material:	Polyolefins
Halogen-free according to EN 60754-1/2:	yes
Halogen-free according to IEC 60754-2:	yes
Low smoke according to IEC 61034-2:	yes
Oil-resistant according to EN 60811-404:	no
Oil-resistant according to IEC 60811-404:	no
Functional integrity:	no
Permissible external cable temperature during assembly/handling:	0 to 50 °C
Permissible Cable external temperature after installation without vibration:	-20 to 60 °C
NVP value:	79 %
Specification of core insulation:	Polyethylene (PE)
Cable longitudinally watertight:	no
Cable transversely watertight:	no
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Dca
Smoke development class according to EN 13501-6:	s2
Drip behavior class according to EN 13501-6:	d1
Acid development class according to EN 13501-6:	a1
Min. permissible bending radius, flexible use with forced guidance:	76 mm
Min. permissible bending radius, flexible use/free movement:	45 mm
Min. permissible bending radius, stationary use/fixed installation:	45 mm
Laying in the ground:	no
UV-resistant:	no
