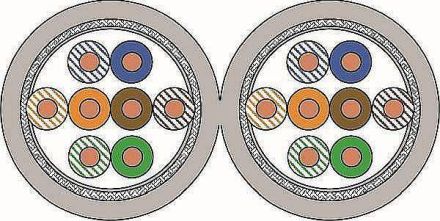

Draka installation cable for indoor use UC300 HS24 Cat.5e SF/UTP 2X4P LSHF Eca Cat.5e copper data cable for structured cabling with a bandwidth of 300 MHz. The cable is double shielded with a high-quality foil and braided shield. The 2x4-pair duplex installation cable with 2x8 AWG24 copper wires is suitable for connecting sockets, patch panels and modules, also with LSA technology, for installation in buildings, in ducts and flush-mounted. The product exceeds the requirements of EN50173-1, EN50288-2-1, ISO/IEC11801, IEC61156-5 and IEEE802.3 af/at/bt. The jacket is made of halogen-free, flame-retardant material in accordance with IEC60332-1, IEC60754-2, IEC61034, EN50399 and Eurofire class Eca. With a coupling attenuation of 55 dB, the product meets separation class C in accordance with EN50174. The cable is future-proof for all applications in accordance with classes C and D and is suitable for operating PoE and PoE+ over a channel length of up to 100 m. It is suitable for the following transmissions: telephony, Ethernet, Fast Ethernet and Gigabit Ethernet, 10BaseT, 100BaseT, 1000BaseT, 1GBase-T or up to 1,000 Mbit/s.
