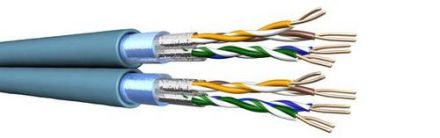

Draka Comteq UC500AS 2x4P F/FTP data cable Duplex AWG23 Cat.6 blue

In stock

SKU: 899890

Price on request

€2.16

€0

Overview

DRAKA UC500AS 2x4P F/FTP data cable duplex AWG23 Cat.6 blue

Property	Value
Number of cores:	16
Outer Ø approx.:	5.7 mm
Conductor diameter:	0.56 mm
Nominal conductor cross-section:	0.25 mm²
Stranding element:	pairs
Core marking:	Color
Sheath color:	blue
Conductor class:	Cl.1 = single-wire
Shield over Stranding element:	Foil
Category:	6A (IEC)
Shield over stranding:	Foil
Sheath material:	Polyolefins
Stranding:	Layers
Perm. External cable temperature after assembly without vibration:	-20 to 60 °C
Number of stranding elements:	8
Material of core insulation:	Polyolefines
Conductor surface:	bare
Halogen-free in accordance with EN IEC 60754-2:	yes
Low smoke in accordance with EN IEC 61034-2:	yes
Oil-resistant in accordance with EN IEC 60811-404:	no
Perm. External cable temperature during assembly/handling:	0 to 50 °C
NVP value:	79 %
Specification of core insulation:	Polyethylene (PE)
Longitudinal watertight cable:	no
Transverse watertight cable:	no
Specification of sheath material:	other
Fire behavior according to EN 13501-6: Class:	Eca
Min. permissible bending radius, flexible use with forced guidance:	57 mm
Min. permissible bending radius, flexible use/free movement:	34 mm
Min. permissible bending radius, stationary use/permanently installed:	34 mm
Suitable for laying in the ground:	no
UV-resistant:	no

Sheath materialPolyolefins

Nominal conductor cross-section0.25 mm²

Category6A (IEC)

Minimal order500 meters

Manufacturer

HAN60015721

GTIN8717511226134

Wire number16

Leader ClassKl.1 = single wire

Coat colorBlue

UV-resistantNo

Draka Comteq UC500AS 2x4P F/FTP data cable Duplex AWG23 Cat.6 blue

Price on request

€2.16

€0
