Draka Comteq UC900HS 4P S/FTP 500 data cable Simplex AWG23 Cat.7 500m or

In stock

SKU: 899903

Price on request

€1.25

€0

Overview

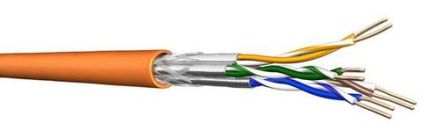

DRAKA UC900HS 4P S/FTP 500 data cable Simplex AWG23 Cat.7 500m or

Property	Value
Number of cores:	8
Outer Ø approx.:	7.2 mm
Conductor diameter:	0.56 mm
Conductor nominal cross-section:	0.25 mm²
Stranding element:	pairs
Core marking:	Color
Sheath color:	orange
Conductor class:	Cl.1 = single-wire
Shield over Stranding element:	Foil
Category:	7
Shield over stranding:	Braid
Sheath material:	Polyolefins
Stranding:	Layers
Perm. External cable temperature after assembly without vibration:	-20 to 60 °C
Number of stranding elements:	4
Material of core insulation:	Polyolefines
Conductor surface:	bare
Halogen-free in accordance with EN IEC 60754-2:	yes
Low smoke in accordance with EN IEC 61034-2:	yes
Oil-resistant in accordance with EN IEC 60811-404:	no
Perm. External cable temperature during assembly/handling:	0 to 50 °C
NVP value:	79 %
Specification of core insulation:	Polyethylene (PE)
Longitudinal watertight cable:	no
Transverse watertight cable:	no
Specification of sheath material:	other
Fire behavior according to EN 13501-6: Class:	Eca
Min. permissible bending radius, flexible use with forced guidance:	60 mm
Min. permissible bending radius, stationary use/permanently installed:	30 mm
Suitable for laying in the ground:	no
UV-resistant:	no
