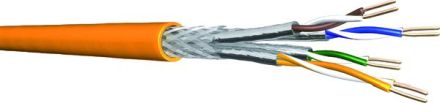

Draka installation cable for outdoor use UC900 HS23 Cat.7 S/FTP 4P PE Cat.7 copper data cable for structured cabling with a bandwidth of 1000 MHz. The cable is double shielded with foil pair shielding and high-quality braided cover. The 4-pair simplex installation cable with 8 copper cores AWG23 is suitable for connecting sockets, patch panels and modules, also with LSA technology for installation in buildings, in fire protection ducts and flush-mounted as well as outdoors for direct burial. The product exceeds the requirements of EN50173-1, EN50288-4-1, ISO/IEC11801, IEC61156-5 and IEEE802.3 af/at/bt. The sheath is made of halogen-free polyethylene. With a coupling attenuation of 80 dB, the shielding meets separation class D according to EN50174. The cable is future-proof for all applications according to classes C, D, E, EA and F and suitable for operating PoE and PoE+ over a channel length of up to 100 m. It is suitable for the following transmissions: telephony, Ethernet, Fast Ethernet, Gigabit Ethernet and 10Gigabit Ethernet, 10BaseT, 100BaseT, 1000BaseT, 1GBase-T, 10GBaseT or up to 10,000 Mbit/s.
