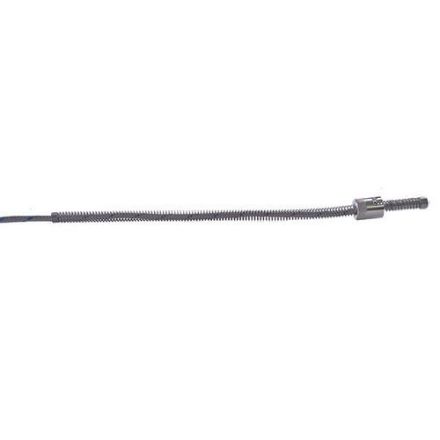

The plug-in thermocouple with bayonet lock (diameter 12 mm) and 2.5 m long compensation cable made of metal braid is suitable for temperature measurement in solids using the Seebeck effect. The protective tube with a diameter of 8 mm made of heat-resistant steel, material 1.4571, is designed with a 120° tip. This makes this design particularly suitable for measurements on plain bearings and tools, for example. The adjustment range of the installation length on the spring is 6 to 250 mm. The single thermocouple 1x Fe-CuNi L according to DIN 43710 is designed for temperatures from 0 to 400 °C. The measuring element is welded to the base (non-insulated structure). The compensation cable can withstand ambient temperatures from -20 to +350 °C.
