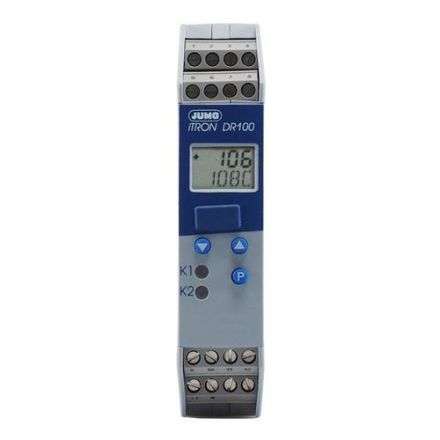

JUMO 00434642 702060/188-888-000-23 Compact controller

In stock
SKU: 720699
€437.06
Into a basketIn the basketGo

Overview

The PID controller has a relay output (changeover contact). The power supply is AC 110 to 240 V +10/-15%, 48 to 63 Hz. It is a universal, freely programmable microprocessor controller that is suitable for a wide range of control applications. Resistance thermometers, thermocouples as well as current and voltage signals can be connected to the freely configurable measuring input. The linearizations of the usual measuring sensors are stored. A 2-line alphanumeric LCD display is available for displaying the actual value and setpoint or for dialog guidance. The parameter setting is dynamic and the value is automatically adopted after two seconds. The standard self-optimization determines optimal control parameters at the touch of a button. In addition, a ramp function with adjustable gradient and a timer function are included. The compact controller can also be used as a two-point controller with limit value monitoring. It is mounted on a DIN rail and wired via screw terminals with a cable cross-section of max. 2.5mm. It has the approvals cULus, GOST, CSA.

Property Value
Number of contacts as changeover contact: 1
Design of the electrical connection: screw connection
Width: 22.5 mm
Height: 109 mm
Depth: 124.8 mm
With removable terminals: no
Number of Measuring circuits: 1
Error storage possible: no
External reset possible: no
Temperature measuring range: -200 to 850 °C

Characteristics

External reset possibleNo
HAB702060/188-888-000-23
ManufacturerJUMO
HAN00434642
GTIN4053877010708
Number of contacts as changeover1
Design of the electrical connectionScrew connection
Width22.5 mm
Height109 mm
With removable clampsNo
Depth124.8 mm
JUMO 00434642 702060/188-888-000-23 Compact controller
JUMO 00434642 702060/188-888-000-23 Compact controller
€437.06
Into a basketIn the basketGo
