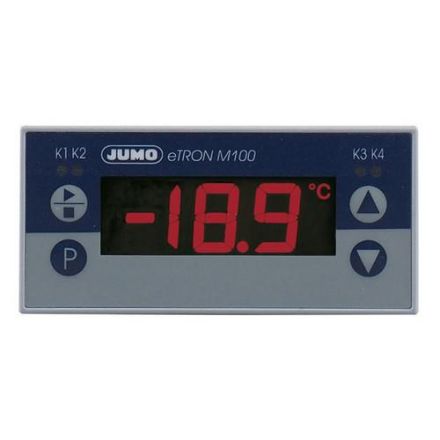

This electronic thermostat is suitable for universal use for connection to resistance thermometers Pt100, Pt1000, KTY1X-6 or KTY2X-6. Two measuring inputs record temperatures that are available as actual values and can be assigned to the relays as desired. There are 4 relays available. The measured values and parameters are shown on a three-digit backlit display. The switching states of the relays K1 to K4 are signaled by yellow LEDs. The electrical connection is made via screw terminals. The device is operated and parameterized using 4 buttons. The voltage supply range is from AC/DC 12 V to 24 V 15%, 48 to 63 Hz.
