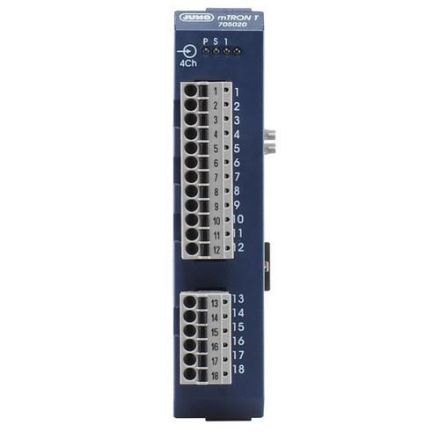

The 4-channel analog input module (component of the overall mTRON T system) has four universal analog inputs with galvanic isolation for thermocouples, resistance thermometers, resistance potentiometers, resistance remote sensors or standard signals (current or voltage) as well as a digital input (DC 0/24 V). The digitized input values/states are available in the system for further processing. The presence of the power supply, the operating states of the module and the logical states of the digital input are displayed by LEDs. The analog input module is easily configured by the user using an optional setup program. The module insert can simply be pulled out of the housing at the front for servicing. The housing including the bus board remains mounted on the top hat rail. The power supply is DC24 V +25/-20 %.
