Wago 770-6223 device socket 3p ger series 770 plug/socket

In stock

SKU: 524627

Price on request

€5.85

€0

Overview

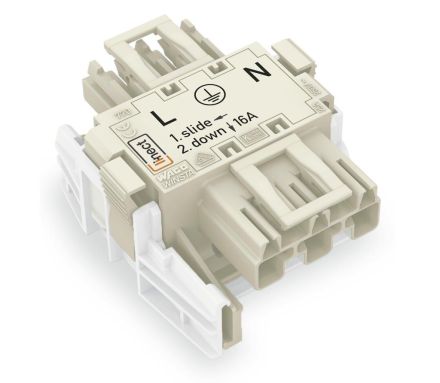

Linect® T-connector 3-pin coding A 1 input 2 outputs white

Property	Value
Connection type:	Spring-loaded connection
Number of connections per pole:	2
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	25 A
Fire load:	0.16639 kWh
Width:	50.5 mm
Contact resistance:	1 mOhm
Installation variant:	Installation part/plug connection
Color of the coding/contact insert:	white
Color of the separate adapter piece:	without adapter piece
Thread connection dimension:	no thread connection
Halogen-free:	yes
Height:	39.4 mm
Contact material:	CuSn
Length:	56.6 mm
Mechanical coding:	no
Surface treatment of the contacts:	tinned
Pole marking:	L, N, PE
Number of poles:	3
Protection class (IP):	IP12
Plug direction:	straight
Degree of contamination:	3
Material of the housing:	Polyamide (PA)
Type of locking:	integrated in the connector
Housing color:	white
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
