Wago 279-815/281-411 component terminal block series 279

Wago 279-815/281-411 component terminal block series 279

In stock

SKU: 520612

Price on request

€4.83

€0

Into a basketIn the basketGo

Overview

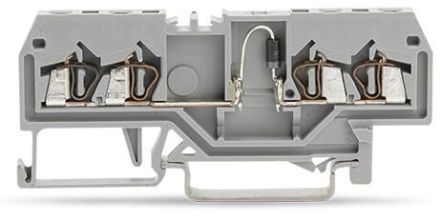

Component terminal, 4 conductors, with diode 1N4007, anode right, for mounting rail 35 x 15 and 35 x 7, 5, 1, 5 mm², CAGE CLAMP®, 1, 50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 1.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 1.5 mm²
Rated current In:	0.5 A
Operating temperature:	105 °C
Rated voltage:	250 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	4
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Component type:	Diode
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic

Characteristics

HAB4 conductors

Minimal order100 pcs

Manufacturer

HAN279-815/281-411

GTIN4050821275404

Connectable conductor cross-section solid0.08 to 1.5 mm²

Connectable conductor cross-section stranded0.08 to 1.5 mm²

Rated voltage250V

Rated current In0.5A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
