Wago 281-673/281-410 Component terminal block series 281

Wago 281-673/281-410 Component terminal block series 281

In stock

SKU: 520516

Price on request

€8

€0

Into a basketIn the basketGo

Overview

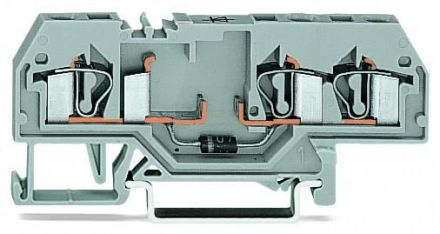

3-conductor diode terminal center labeling with diode 1N4007 for TS 35 front wiring CAGE CLAMP® connection horizontal design gray

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Rated current In:	0.5 A
Operating temperature:	105 °C
Rated voltage:	250 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	3
Levels bridged internally:	no
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Component type:	Diode
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic

Characteristics

HAB3 conductors

Minimal order50 pcs

Manufacturer

HAN281-673/281-410

GTIN4050821275589

Connectable conductor cross-section solid0.08 to 4 mm²

Connectable conductor cross-section stranded0.08 to 4 mm²

Rated voltage250V

Rated current In0.5A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 281-673/281-410 Component terminal block series 281

Wago 281-673/281-410 Component terminal block series 281

Price on request

€8

€0

Into a basketIn the basketGo
